CL-30

Product Description

_{CL-30  Carbon steel doctor blade features superior abrasion resistance compared to the CL-20 doctor blade and usese high quality,swedish sandvick cold rolling corban steel over all performance that is 20% better then the base materials of the CL-20.This ensures the CL-30 Blade effectivlly removes greater amounts of inks to ensure a clear printing result.}

_{A heat treatment process has improved the durability and corrosion resistance of the blade,making it suitable for 250m/minute and higher printing press speeds,as well as for use in a variety of other printing presess to remove excess ink.}

_Parameters

_{2067 element contant}

 _{C        Mn      Si         P           S        Cr}

_{1.00      0.3      0.25      0.025       0.025     1.5}

_{Tensile Stregth:  1800-2000 N/mm}

_{HARDNESS:   580-600 HV}

_{LINEARITY: 0.15mm/1m}

_Advantages

_{1. The hardness levels of the CL-30 blade and CL-20 blade are the same.Blades with a higer hardness reduce wear on the cylinder and anilox rollers}

_{2. An improved microstructure give the blade a better durability and reducess burrs in the blade edge.}

_{3. The precise polishing process prevents ink impurities from sticking to the blade surface,thus ensuring a clearer print pattern.}

_{4. Compared to CL-20,the blade is more stable in property and its service life can be up  to 180000 cylinder rph for black printing.}

_Type:

^{Size(Width)              Speed                        Thickness(Base Material)                Package}

 _{40mm   250m/min & above  0.152mm    100/Box}

 ^{50mm  250m/min & above   0.152mm    100/Box}

^{Note: The above data is standard sizes only. we can customize blade sizes according to customers requirments.}

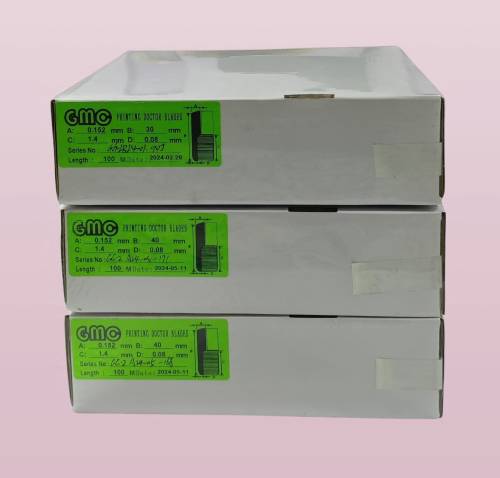

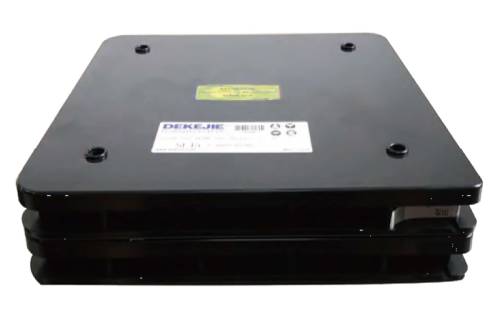

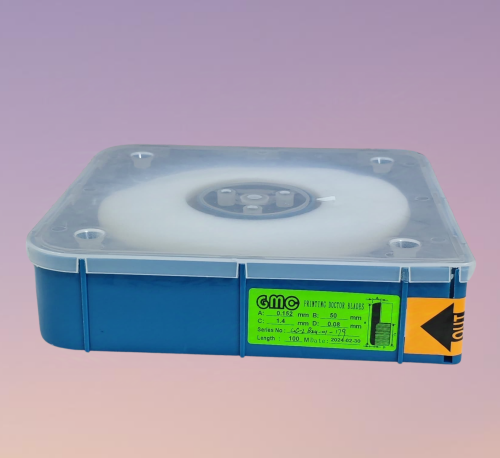

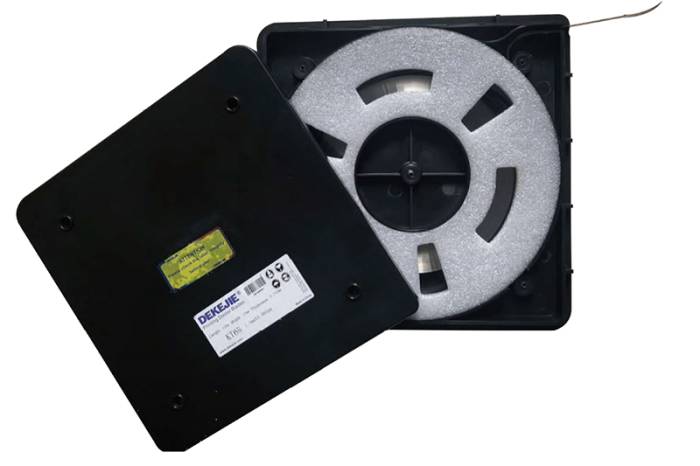

_{Packaging Box}

_{1. Packaging box uses ABS plastic featuring environmental protection toughness and wear corrosion resistance}

_{2. Good Looking Packaging box with anti-counterfeiting lable}

_{3. There is no need to open the box so time is saved}
